Expected Cost in Orange County
$150–$600+ depending on the cable and garage door system.
Availability
24/7, same-day service available.
Duration
30 minutes to 2 hours.
Repair or Replacement
We check whether the cable can be reset or should be replaced.
Warranty
Parts and labor covered. Coverage varies by service and work performed.
Clarity
We explain what’s needed, price, and warranty before work starts.
Garage Door Cable Repair in Orange County
Champion Garage Door provides garage door cable repair and replacement in Orange County and select South Los Angeles communities. We service standard, heavy, custom, high-lift, and rear-torsion garage door systems with different cable lengths and diameters.
Our trained and certified technicians arrive equipped with various cable sizes, tools, and replacement parts needed to complete most cable repairs in one visit. Before we move forward, we explain what the cable problem involves, what the repair will cost, and the warranty.
Is the Cable Broken, Loose, or Off the Drum?
A damaged cable is handled differently from one that has lost tension or come out of position.
| What you see | What it can indicate |
| Frayed strands, kinks, flattening, corrosion, or a snapped cable | Physical damage to the cable itself. |
| A loose or hanging cable | The cable has lost tension. |
| Cable outside the drum grooves or completely off the drum | The cable has moved out of its path. |
| One side of the door sits lower or rises first | The door is no longer lifting evenly. A cable may be involved, but other parts in the lifting or travel system can create a similar condition. |

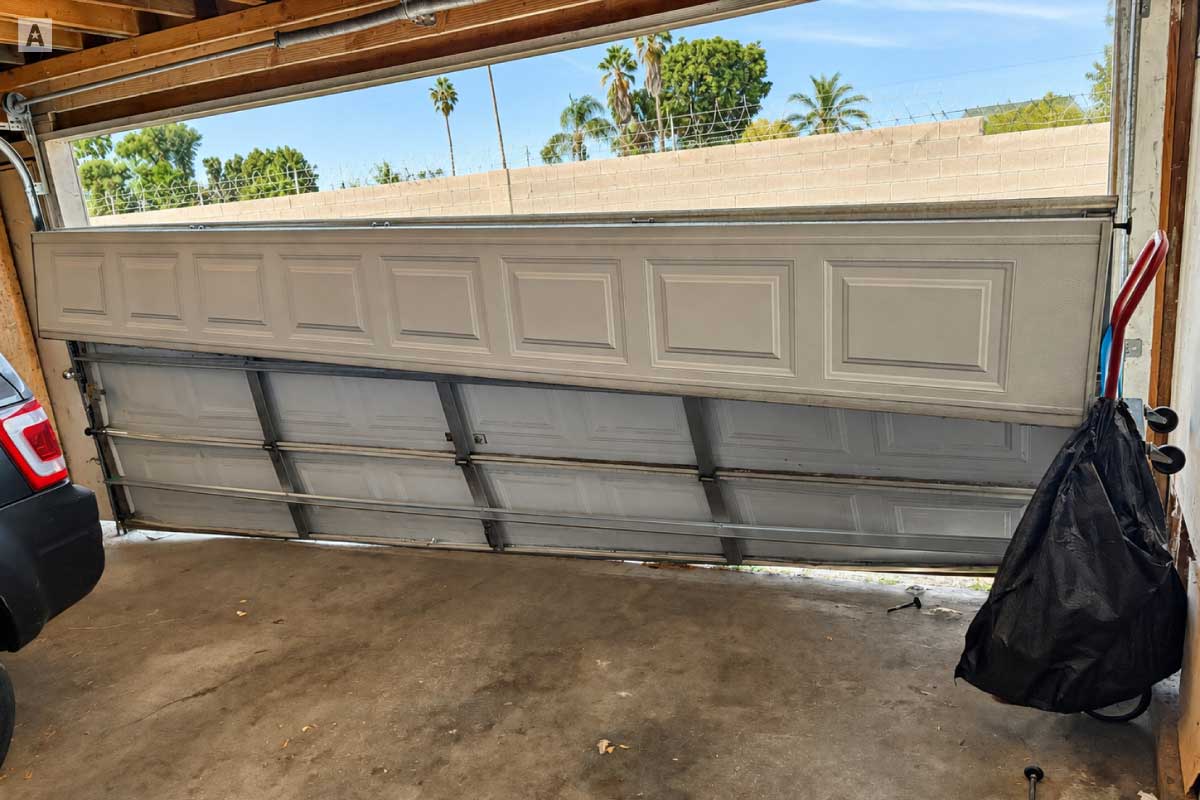

| Door is crooked, jammed, or partly off track | The cable may be out of position or broken, or cable tension may be uneven. |
What to Do if a Garage Door Cable Breaks or Comes Off
What you should do depends on the situation and where the garage door stopped.
| Door position | What to do |
| Door is fully closed | Stop using the opener and leave the door closed until the cable system can be checked. |
| Door is partly open | Keep clear of the door and do not try to raise or lower it. |
| Door is crooked or one side is hanging lower | Stop operating the door and keep people, pets, and vehicles away from it. |
| Door is open with a loose or hanging cable | Do not pull the emergency release or attempt to lower the door yourself. |
| Vehicle is trapped inside | Tell us the door position and that a vehicle is trapped inside when scheduling service. |
Do not try to put the cable back on the drum, adjust the spring, or straighten a crooked door. These parts work together under tension and tampering with one part can change the load on the others.
Cable Repair, Start to Finish
We check how the door and cable are sitting, trace what caused the problem, and test the door again after the repair.
Initial Check
We check where the door stopped, whether it is level or crooked, and whether the cable is seated on the drum, has come off, or is broken.
Follow the Cable Path
We check the cable from its bottom attachment point to the drum, along with the drum, spring, shaft, bearings, door balance, and anything that may be interfering with movement.
Determine What’s Needed
We determine whether the cable can be reset or should be replaced, confirm the correct cable size and length when replacement is needed, and go over the work, price, and warranty before starting.
Test the Door
After the repair, we check that the cables are seated correctly, the door lifts evenly, is balanced, and travels properly through its full range. We also go over any remaining issues before we leave.

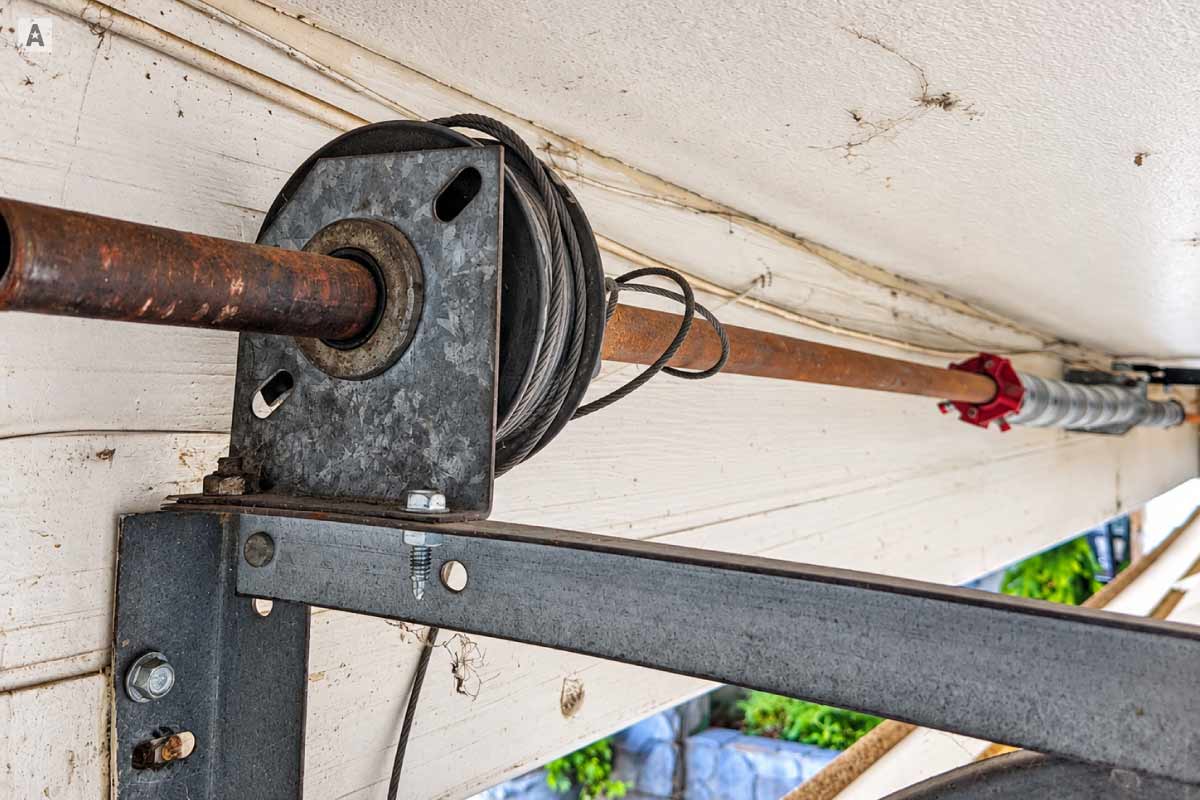

Why a Garage Door Cable Comes Off the Drum

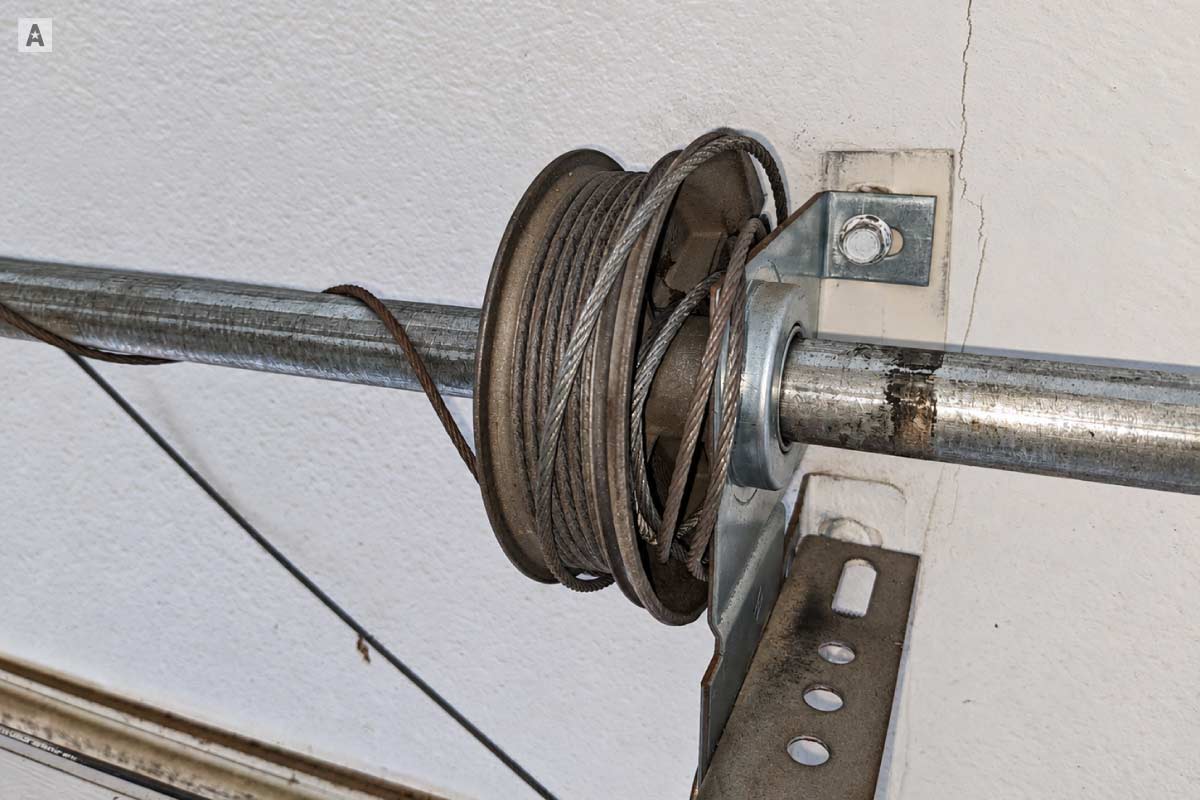

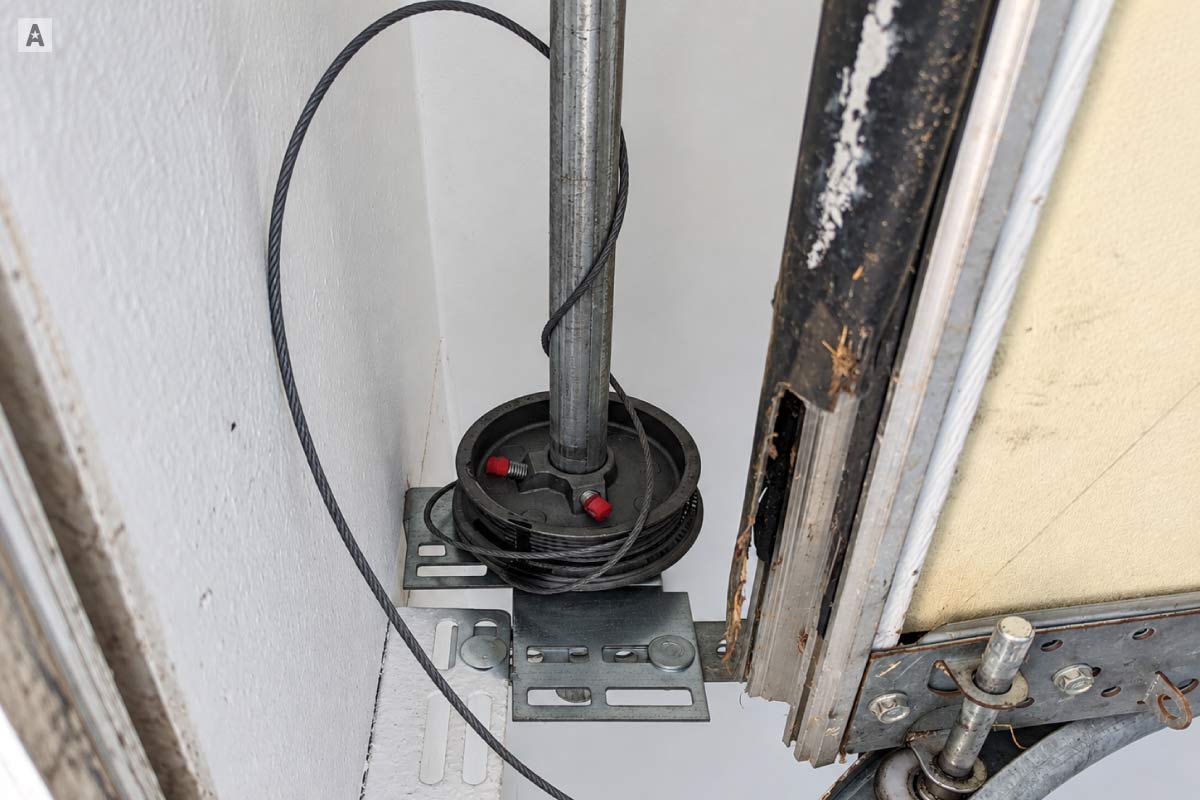

A lift cable stays seated in the drum grooves because the tension from the spring keeps it tight. When that tension is lost, the cable can loosen, overlap itself, or come off the drum. The cable can lose tension for several reasons:
- One side of the garage door stops or binds due to a roller, track, or other part that prevents proper movement.

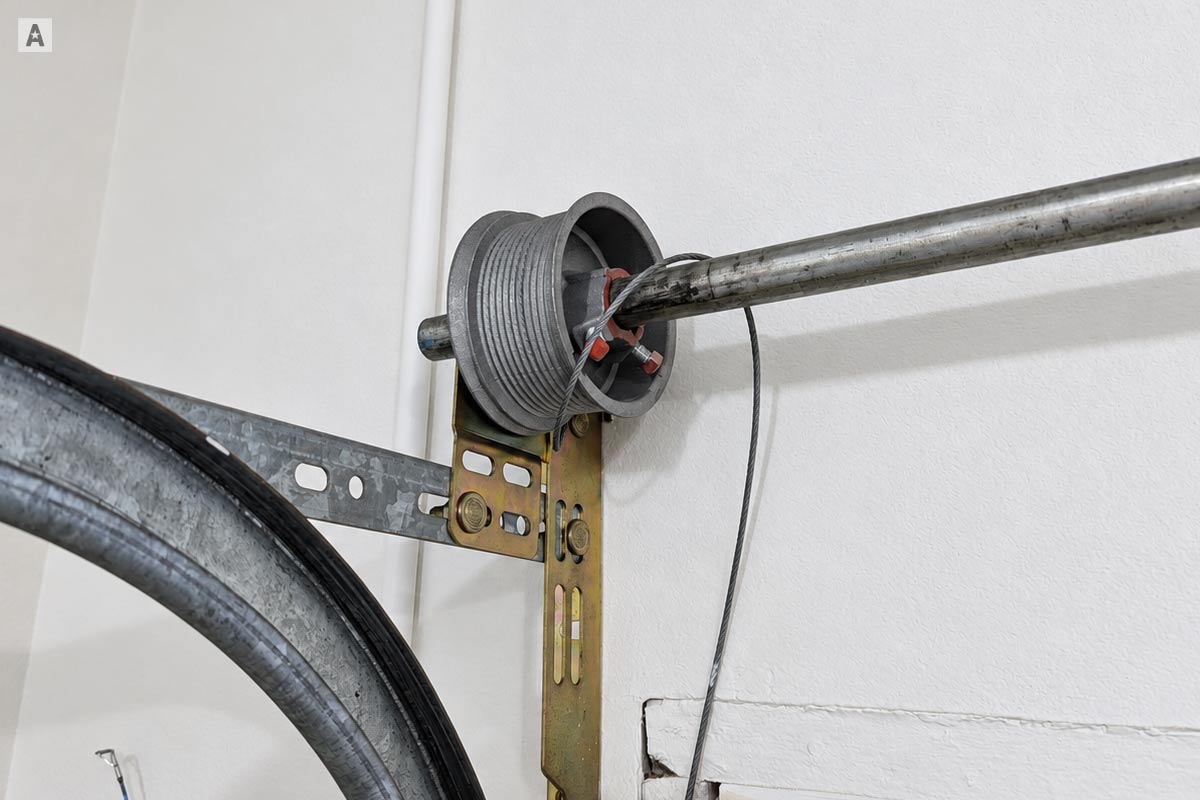

- A broken spring or loss of spring tension may allow the cable to come off the drum.
- Incorrect spring size or poor door balance can affect cable tension.
- The cable is damaged or improperly tensioned.

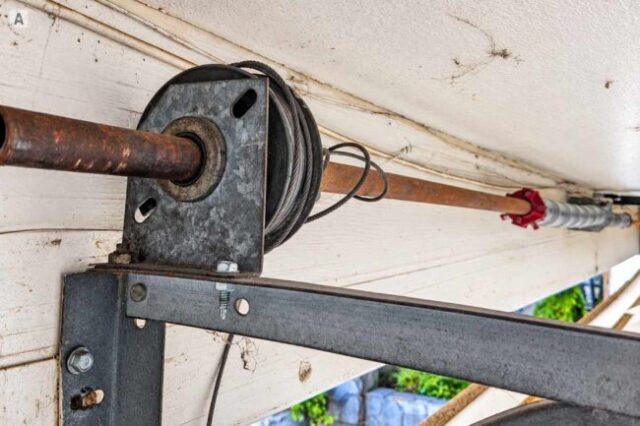

- A drum, shaft, or bearing problem interferes with cable movement.
- An object caught in the doorway can stop the door from moving evenly and cause the cable to lose tension.
The cable may show where the failure appeared without showing where it started. Finding out why it happened often requires checking the drum, cable connection points, spring system, door balance, and door movement.
Cable Reset vs. Replacement
An intact cable that has slipped off the drum may need to be handled differently from a cable with frayed strands, kinks, flattening, corrosion, or a break.
| Cable condition | What may be needed |
| Cable is off the drum but shows no visible damage | It may be reset once the condition that caused it to lose tension is addressed. |

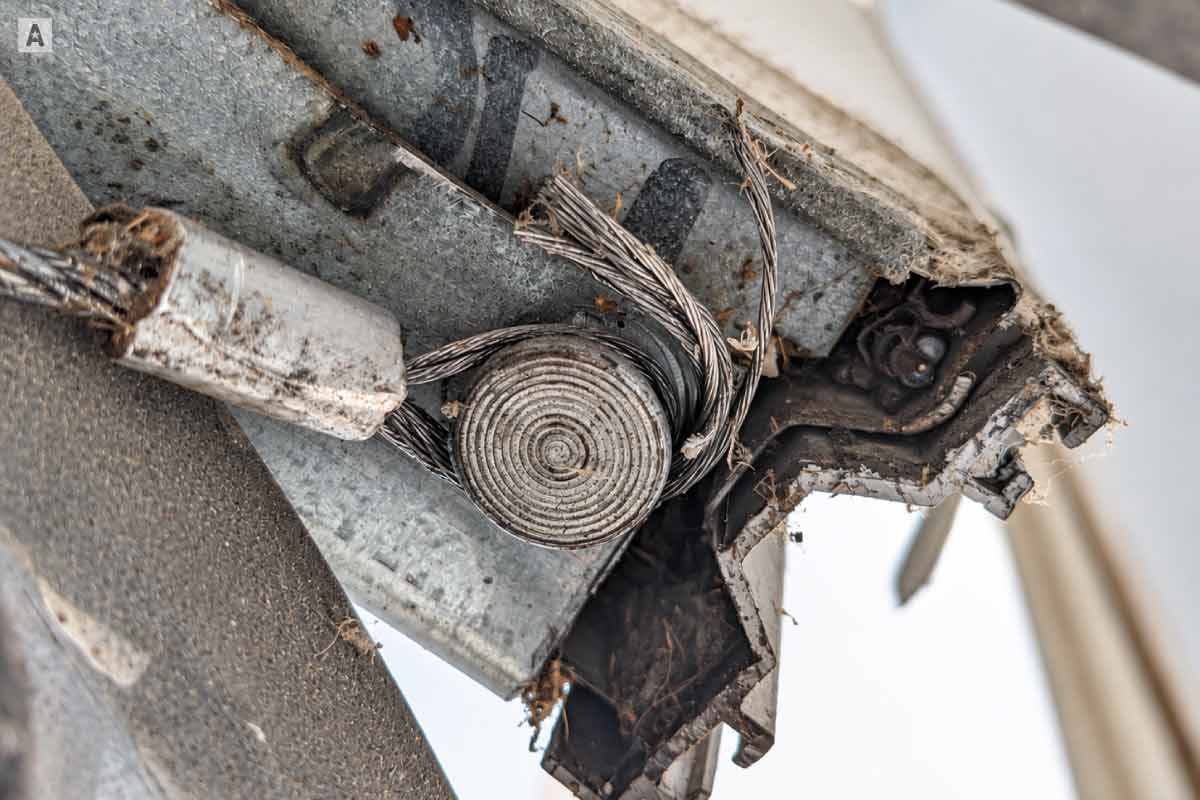

| Frayed or separated strands | Replace the cable. |
| Kinks, flattening, or crushed areas | Replace the cable. |
| Corrosion affecting the cable strands | If corrosion has weakened the cable, replacement may be needed. |

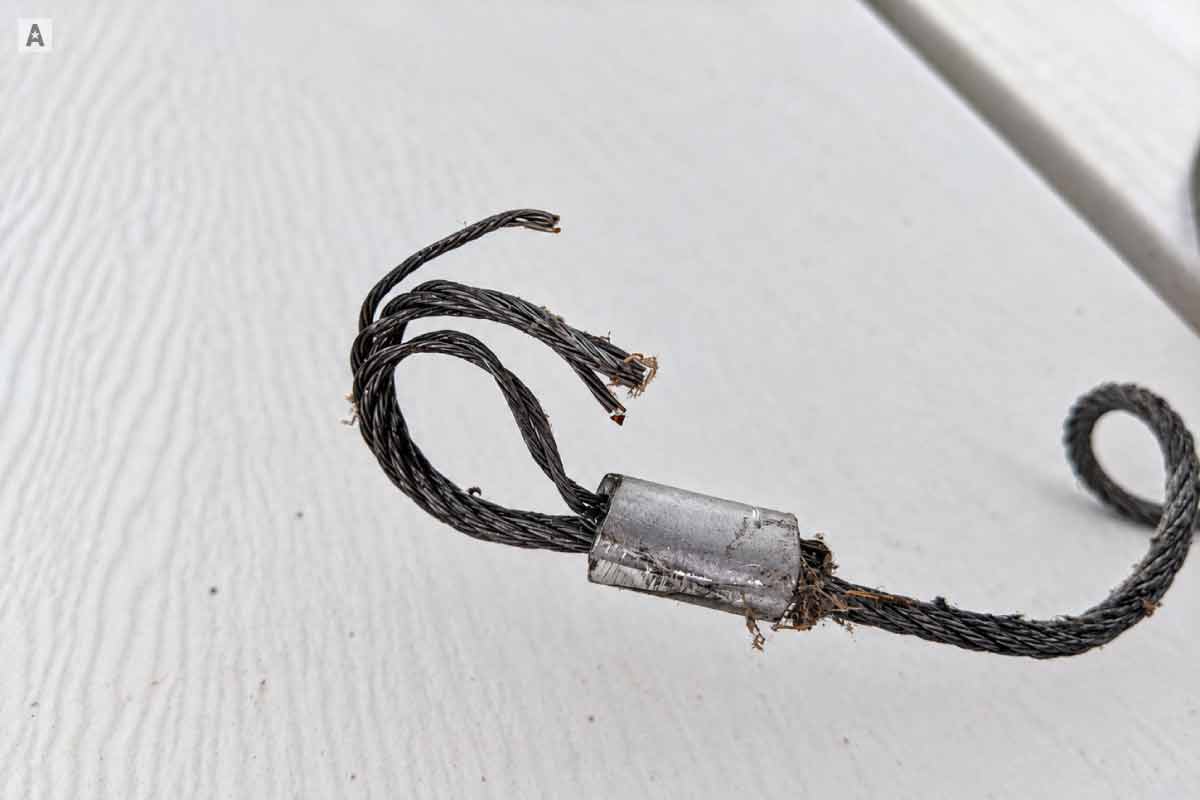

| Cable is broken | Replace the cable. |
| The cable is incompatible with the garage door or drum setup | Install a compatible replacement cable. |
Garage Door Cable Replacement by Size and Setup
The cable has to match the weight of the garage door as well as the drum and lift setup. Common garage door cable diameters in Orange County include 1/8″ and 5/32″, but we also see 3/16″ and 1/4″ cables on some systems.
Standard-lift, high-lift, rear-torsion, and other configurations can use different cable lengths and drums even when the door weights are similar. The cable ends and attachment setup can also vary by system. Our technicians determine the proper cable size and length based on the door’s weight, drum type, and lift configuration.
Garage Door Cables Near the Orange County Coast
Garage doors located closer to Orange County’s coast are often exposed to salt and moisture from the ocean, with the garage door cables subject to the same conditions. The closer the garage is to the ocean, the more salt and moisture can reach the cable, increasing the potential for corrosion damage.

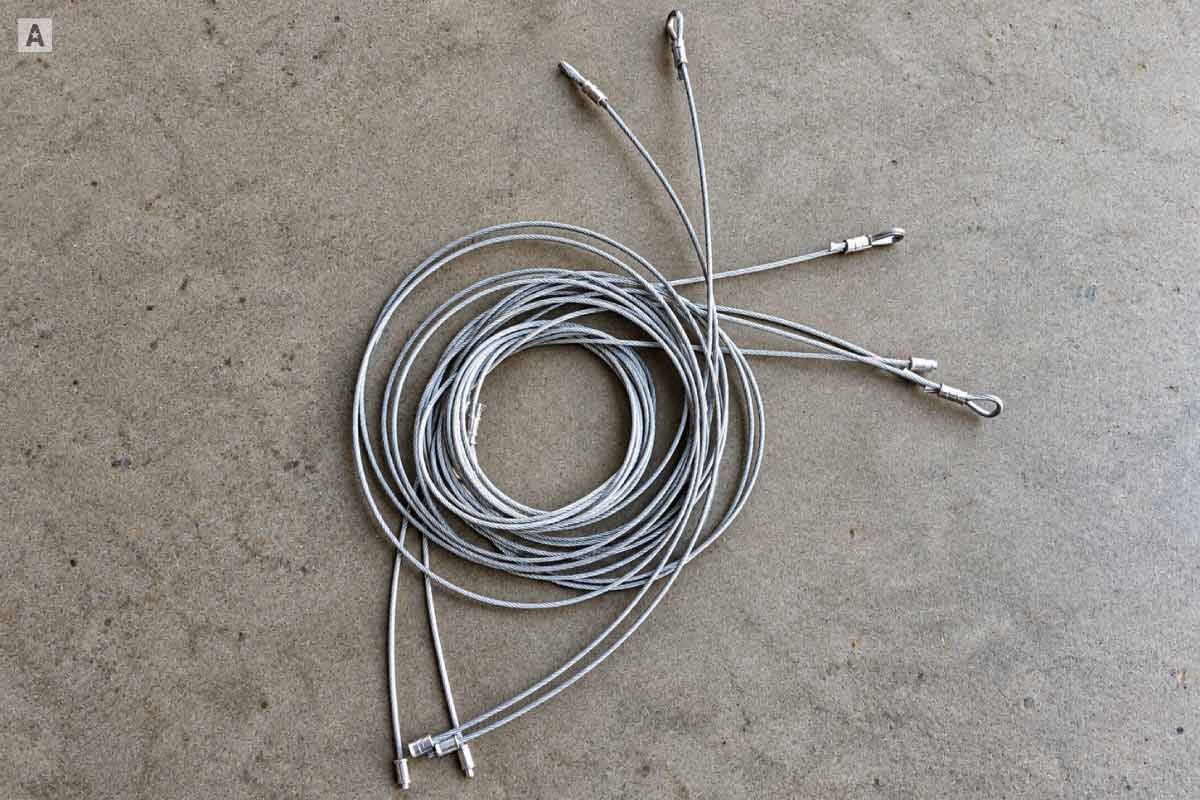

We supply and install galvanized aircraft cables with a zinc coating that protects the steel strands. Nonetheless, the coating can wear or be consumed over time, and salt and moisture can still contribute to corrosion of the cable underneath.
Our technicians check for rust on the outside of the cable, along with pitting, broken strands, corrosion between the strands, and damage or wear near the cable ends and loops. That helps us decide if the cable is still usable or should be replaced.
Garage Door Cable Repair Cost
Garage door cable repair can range from a straightforward cable reset to replacement on a heavy or custom garage door. The price ranges are general estimates for garage door cable repair in Orange County, with costs varying based on job details.
| Cable service | Typical price | What can change the price |
| Cable off-drum repair | $150–$300+ | The door is crooked or off track, the cable has overlapped on the drum, or another problem causing the loss of tension also needs to be addressed |
| Standard cable replacement | $150–$300+ | One or both cables, cable length and diameter, door weight, or worn drum or attachment hardware |
| Cable repair with off-track or drum work | $250–$400+ | Door position, drum condition, track involvement, and related damage |
| Heavy-duty or custom cable replacement | $300–$600+ | Larger cable sizes, heavy or custom doors, high-lift or rear-torsion setups, bottom bracket type, and access to the cable system |

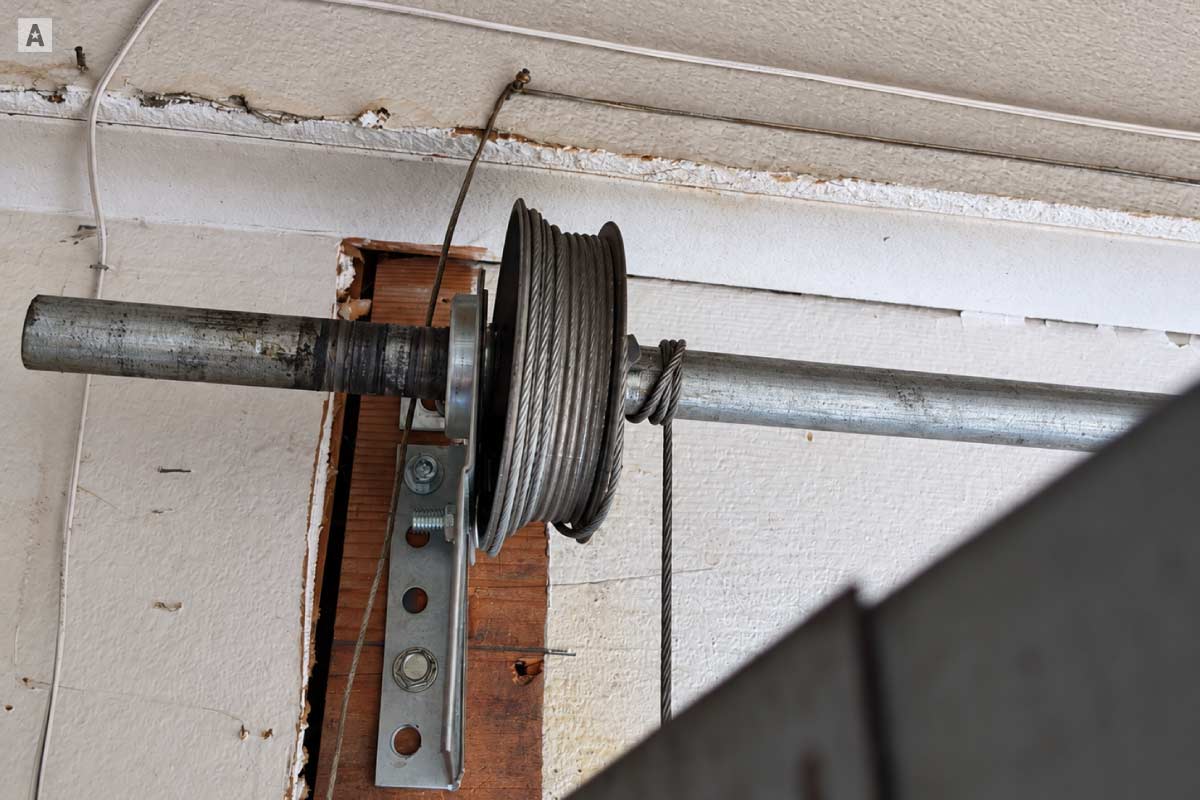

Cable Trouble in Orange County, Up Close
It may fray, slip, overlap, tangle, or pull the door out of position before it finally lets go.
